MIG TIG SAW FCAW Welding Manipulators Medium Duty Column Boom

পণ্যের বিবরণ

Place of Origin: China

পরিচিতিমুলক নাম: Ronniewell

সাক্ষ্যদান: CE,ISO,CSA

Model Number: LH4040

পেমেন্ট ও শিপিংয়ের শর্তাবলী

Minimum Order Quantity: 1set

মূল্য: pls confirm with us

Packaging Details: naked with seaworthy package

Delivery Time: 30working days

Payment Terms: 30% TT in advance, 70% TT before the shipment

Supply Ability: 30 sets per month

সেরা মূল্য পান
লক্ষণীয় করা:

wind tower welding line

,

Column And Boom Manipulator

বুম অনুভূমিক স্ট্রোক:
4000mm
কলাম উল্লম্ব স্ট্রোক:
4000mm
গঠন:
সরান এবং ঘোরান
Boom end max. বুম এন্ড সর্বাধিক। loading বোঝাই:
100kg
কলাম ঘোরানো লকিং পদ্ধতি:
ম্যানুয়াল দ্বারা
কলাম ঘোরানো কোণ:
+/- 180 ডিগ্রি
বুম অনুভূমিক স্ট্রোক:
4000mm
কলাম উল্লম্ব স্ট্রোক:
4000mm
গঠন:
সরান এবং ঘোরান
Boom end max. বুম এন্ড সর্বাধিক। loading বোঝাই:
100kg
কলাম ঘোরানো লকিং পদ্ধতি:
ম্যানুয়াল দ্বারা
কলাম ঘোরানো কোণ:
+/- 180 ডিগ্রি
MIG TIG SAW FCAW Welding Manipulators Medium Duty Column Boom

MIG TIG SAW FCAW Welding Manipulators Medium Duty Column Boom





Brief introduction:

Column and boom manipulators are used to locate a weld head to a desired position for welding in

a stable and secure manner.





Column boom welding manipulator detail description:

  • Absorbing state of the art welding technics both inland and abroad,column boom welding manipulator is esstial part of pipe automated welding center.

  • There are a number of designs for the columns, such as the stationary type, the stationary and rotating type, and the all orientation type.

  • The movement of the boom is adopted with frequency conversion control. Good in mechanic precise,accurate in positioning.

  • PLC programming controller is optional.

  • Depends on pipe technics craft, the column boom welding manipulator is able to equip with SAW, TIG, FCAW etc welding machine.

  • Used together with welding rotator or welding positioner, the column boom welding manipulator is widely used in industries as boiler, pressure vessel, petro-chemical machinery for welding of inner and outer longitudinal seams and circumferential seams.

  • It has the advantage of in advanced structure,complete function, easy operation, which ensures improving of welding quality.

  • According to the requirement, it can be adopted welding seam tracing and monitoring, welding flux recovery and feeding device.




Feature of the column boom welding manipulator:

  • Boom end equipped with electric cross slides,which can adjust position of welding head.

  • Automatic flux feeding, recovering devices, wire feeder device, working platform and  chair are ptional.

  • Stretching of cross boom adapts AC frequency converter stepless speed control and run with steady speed.

  • Automatic column boom welding manipulator can be adopted with various welding power (Chinese or international famous brand) .

  • Chain break-resistant and anti-slip device in boom to guarantee safety.

  • Braking device can ensure column work in safe environment.

  • Customization requirements are acceptable.





Main parameter of column boom welding manipulator:

Model

LH2020

LH3030

LH4040

LH5050

LH6060

Structure:

Travel & Rotation

Boom horizontal stroke : mm

2000

3000mm

4000mm

5000mm

6000mm

Boom vertical stroke : mm

2000

3000mm

4000mm

5000mm

6000mm

Boom horizontal speed :mm/min

150-1500

150-1500

150-1500

150-1500

150-1500

Boom vertical speed : mm/min

1000

1000

1000

1000

1000

Boom horizontal motor power :kW

0.55

0.55

0.55

0.55

0.55

Boom vertical motor power :kW

2.2

2.2

2.2

3

3

Column rotating angle

±180°

±180°

±180°

±180°

±180°

Column rotating speed- Optional :rpm

0.75

0.75

0.75

0.75

0.75

Column rotating motor-Optional : kW

0.75

0.75

0.75

0.75

0.75

Column rotating locking method

By manual

Boom end max. loading

100kg





Benefits:
The standard column boom welding manipulator has several benefits over welding the part manually, including:

  • Able to achieve consistent weld results;

  • Able to maintain weld head over weld joint in a stable position during the weld;

  • Increases arc-on time and overall productivity;

  • Provides ability to have multi-weld stations using only one weld head, increasing your return on investment;

  • Reduced operator fatigue;

  • Reduced consumable costs;

  • Ability to have two welding process at one welding station by using both ends of the boom

These benefits greatly reduce the time to prepare a part for welding and the time to finish a part after welding. Also, rework time will be reduced and part scrap will be cut.

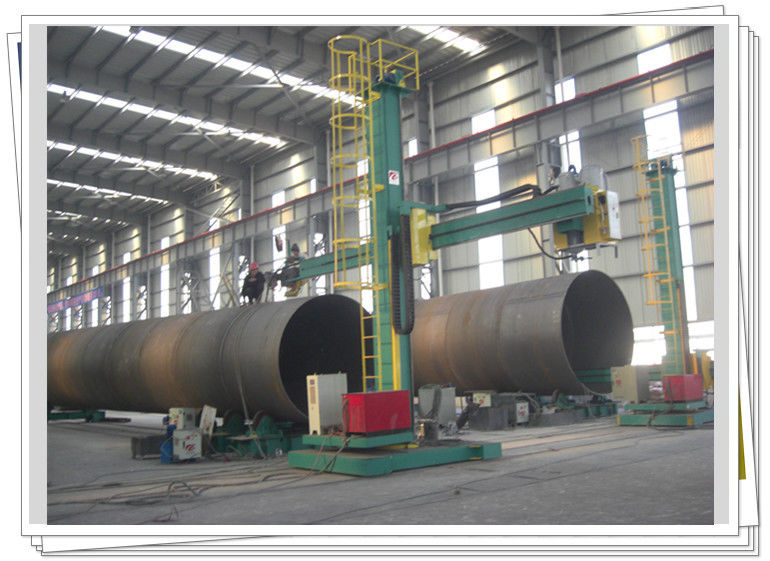

Delivery picture:

MIG TIG SAW FCAW Welding Manipulators Medium Duty Column Boom 0





Exhibition:

MIG TIG SAW FCAW Welding Manipulators Medium Duty Column Boom 1





Product name:
column boom welding manipulator, column boom column boom welding manipulator, CaB, column boom welding manipulator  boom,automatic welding machine, automatic welding center, cross beam column, welding manipulator;
